The Locke Adder C.E. Locke Mfg. Co. 1901

The Locke Adder C.E. Locke Mfg. Co. C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder C.E. Locke Mfg. Co.
C.E. Locke Mfg. Co. Kensett Iowa 1901

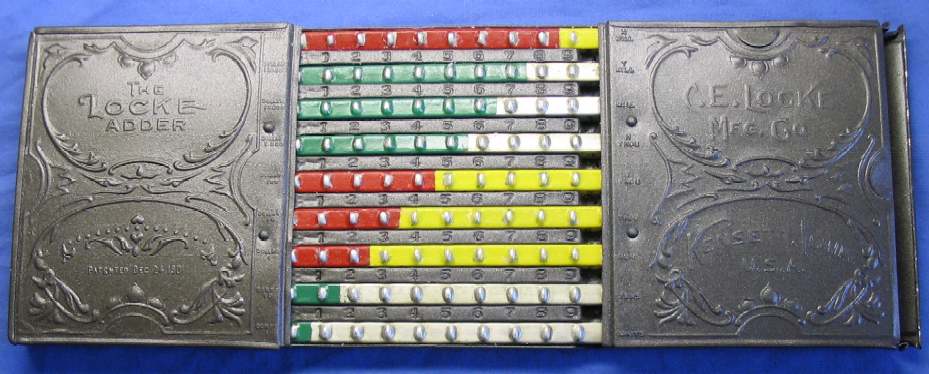

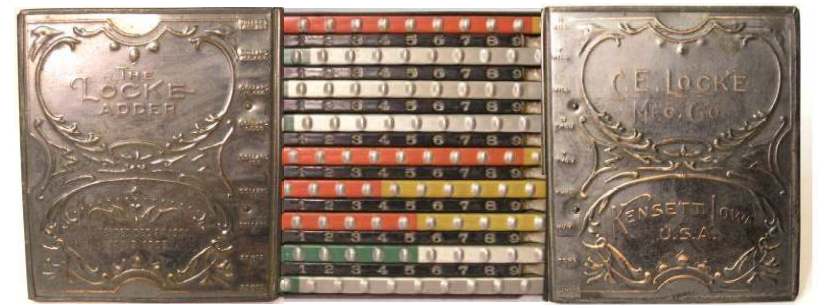

The eye-catching Locke Adder, invented by Clarence E. Locke of Kensett Iowa, is a delightful example of calculating Americana from the turn of the 20th century. One part clever design and nine parts marketing relentlessness, the Locke Adder is very much the "American Abacus" in that its impressive appearance and affordable price made it a mail-order success story while only superficially improving upon its rustic Asian cousin

The adder is light in weight and visually pleasing, with elaborate Victorian scrollwork stamped into aluminum sheet metal painted black or copper/bronze. A set of brightly colored horizontal sliding bars of hollow aluminum are manipulated with the fingers in order to determine sums.

A number is entered on a given bar by placing the index finger on the raised knob corresponding to the desired digit and sliding the knob leftward as far as possible. The user must account for a tens carry manually by a combination of a rightward adjustment of the current bar and the advancement of the bar above by one, much as is done with a traditional abacus. The split-colored sliders aid the user in recognizing and carrying out the tens carry operation.


The Locke Adder C.E. Locke Mfg. Co. C.E. Locke Mfg. Co. Kensett Iowa 1901

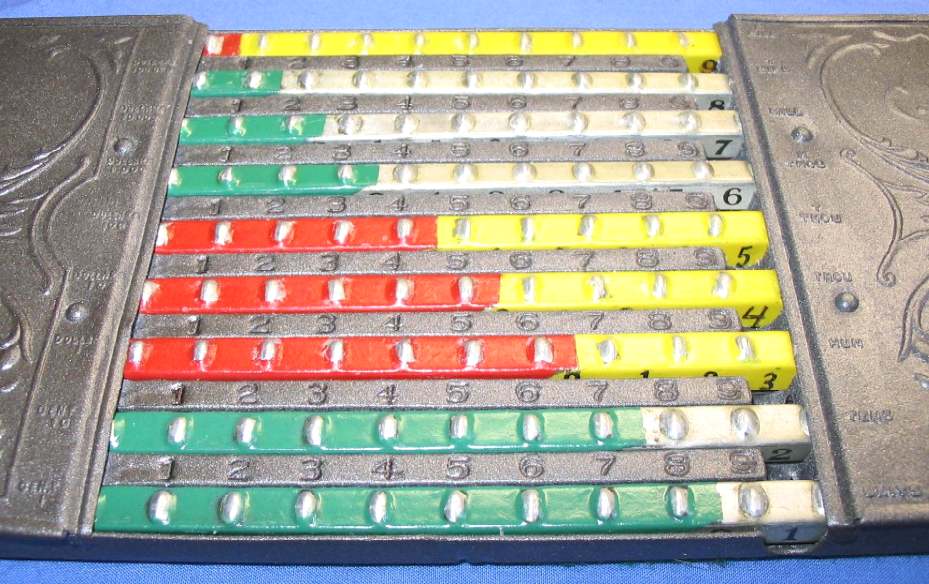

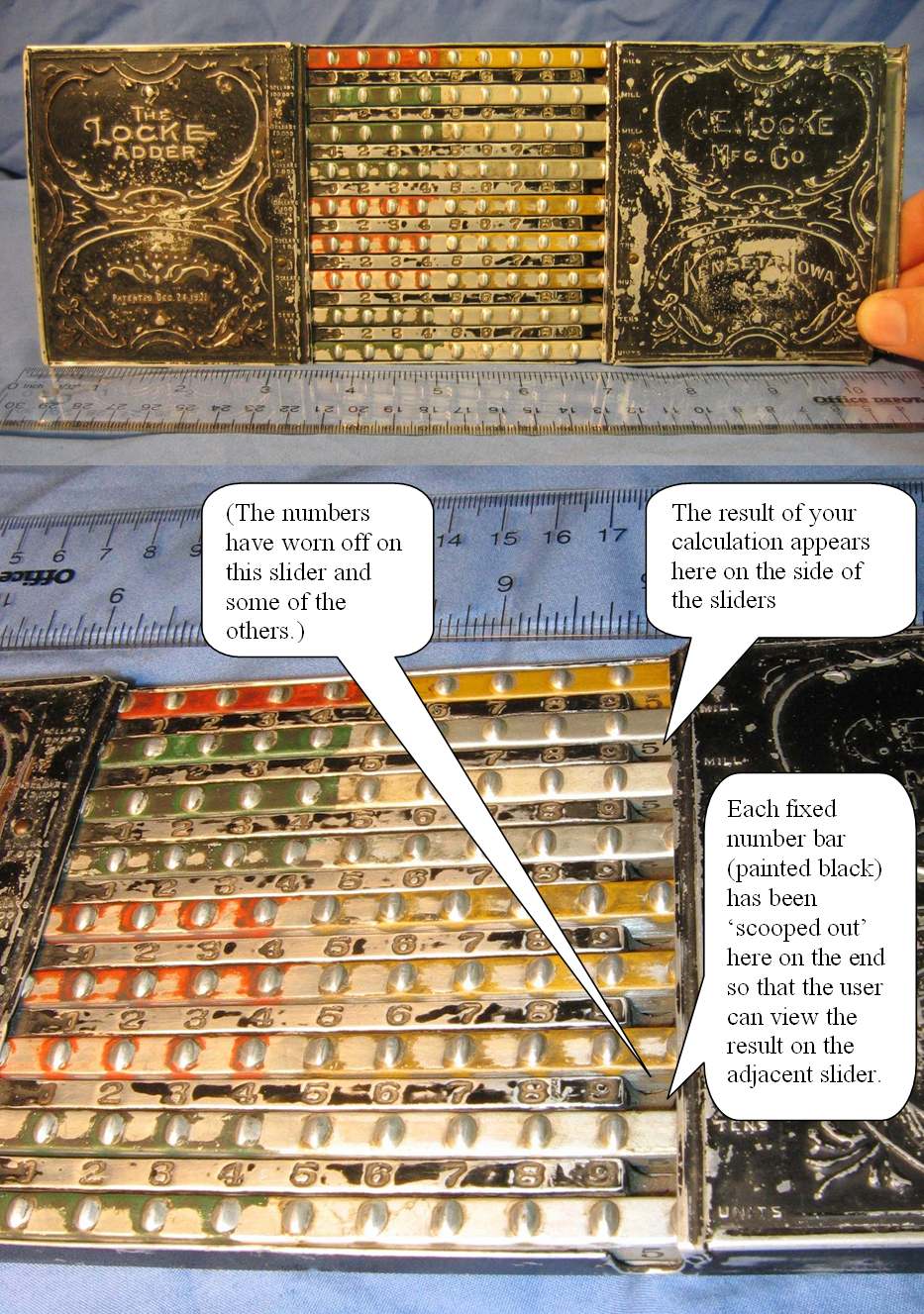

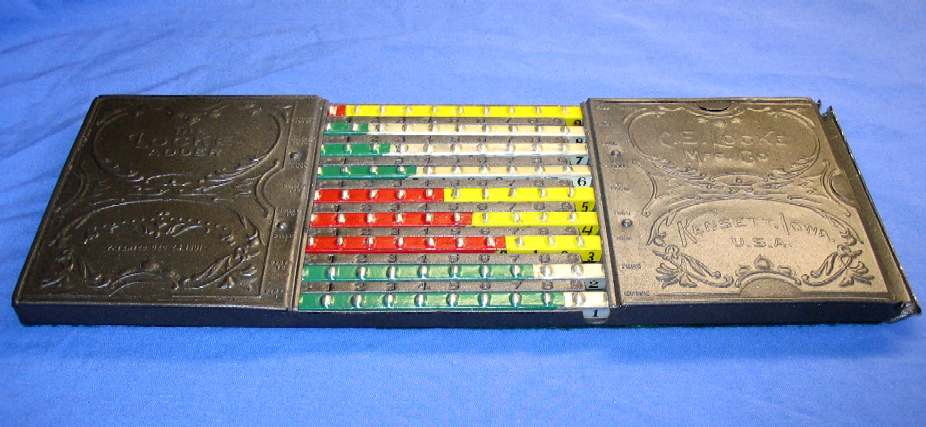

The resulting sum appears in the rightmost column of the central operating area. A single digit is exposed on the side of each sliding bar (when viewed from an angle), and these taken together form the answer. In the photo above, the result is 987,654,321. The result may also be inferred from any viewing angle with a glance at the center-point of each split-colored slider.

The Locke Adder C.E. Locke Mfg. Co. Kensett Iowa 1901
Advertisement for The Locke Adder C.E. Locke Mfg. Co.
(source The American Monthly Review of Reviews 1901)

The adder was intended to be placed on the ledger, and manipulated from above, as shown in this advertisement. However the the operator must tilt his head down - or tilt the bottom edge of the adder up - in order to make out the result-- not very convenient! Also, my finger easily slips off the knob as I'm sliding a bar, and it is difficult to recover the calculation once this occurs.

The operating instructions helpfully admonish us to: "Remember that the adder can make no mistakes. If you ever get an incorrect result it will be because you have failed to operate it properly."

This adder is a favorite of mine for its colorful eccentricity, but all in all, it's not hard to understand why it is relatively rare -- more than a few were likely tossed onto the trash heap!


The Locke Adder

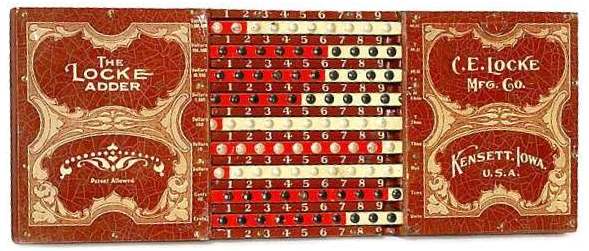

The red finish shown here is rare (source ebay)

The Locke Adder C.E. Locke Mfg. Co. Kensett Iowa 1901
---------------------------------------

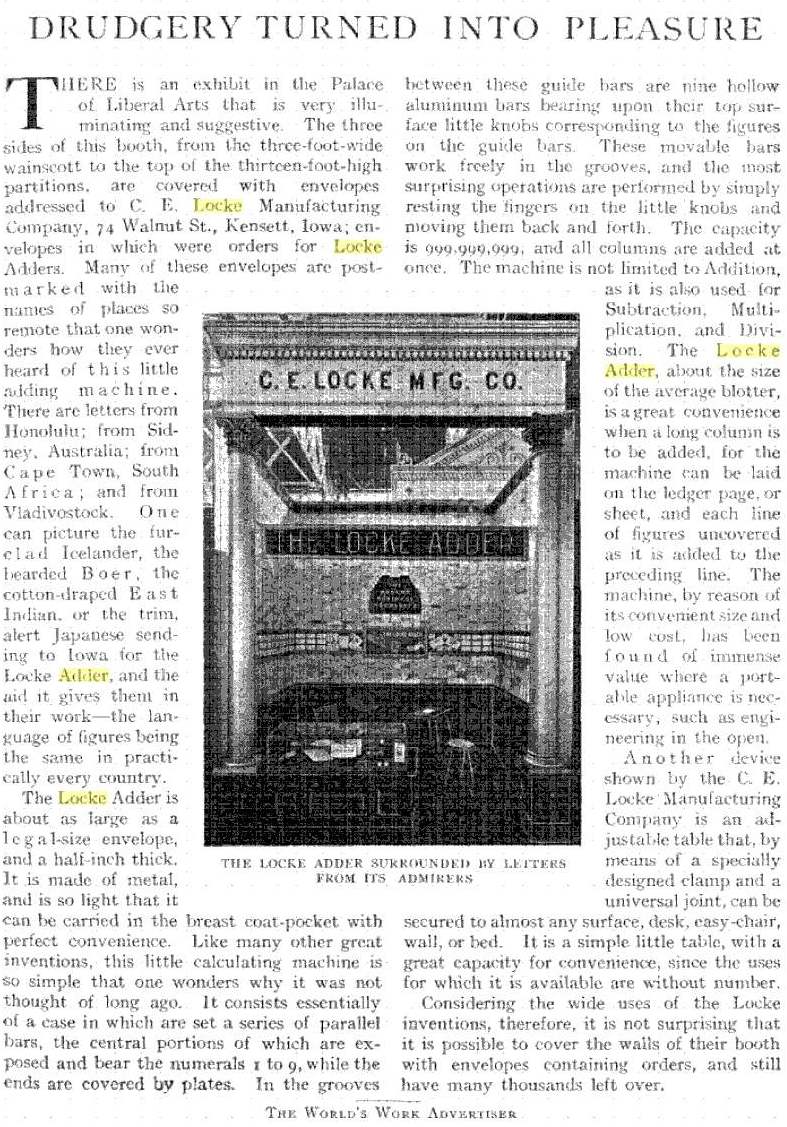

Article from the St. Louis Exposition 1904 (source: books.google.com)

Save Your Brain
"Cannot make mistakes" and "Saves time, labor, brain" (source ebay)

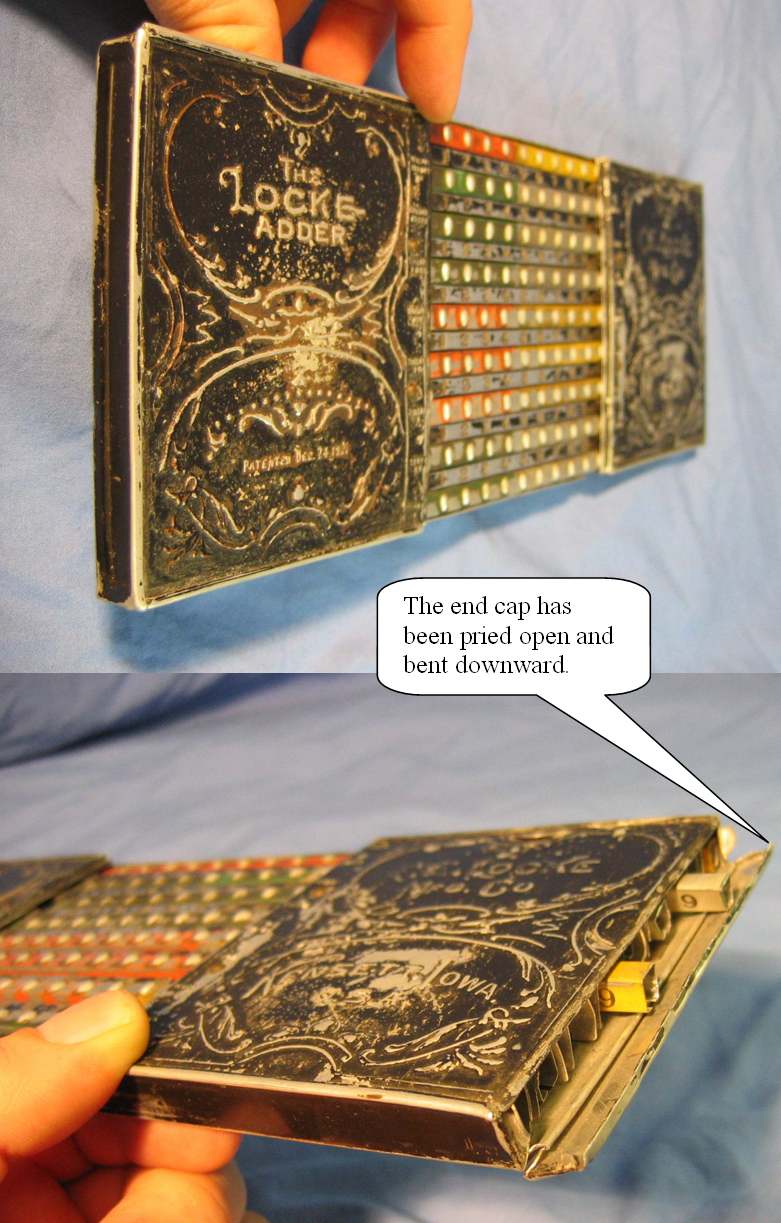

Below is a 'less than mint' condition Locke shown diassembled
The Locke Adder Disassembled C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder Disassembled C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder Disassembled C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder Disassembled C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder Disassembled C.E. Locke Mfg. Co. Kensett Iowa 1901

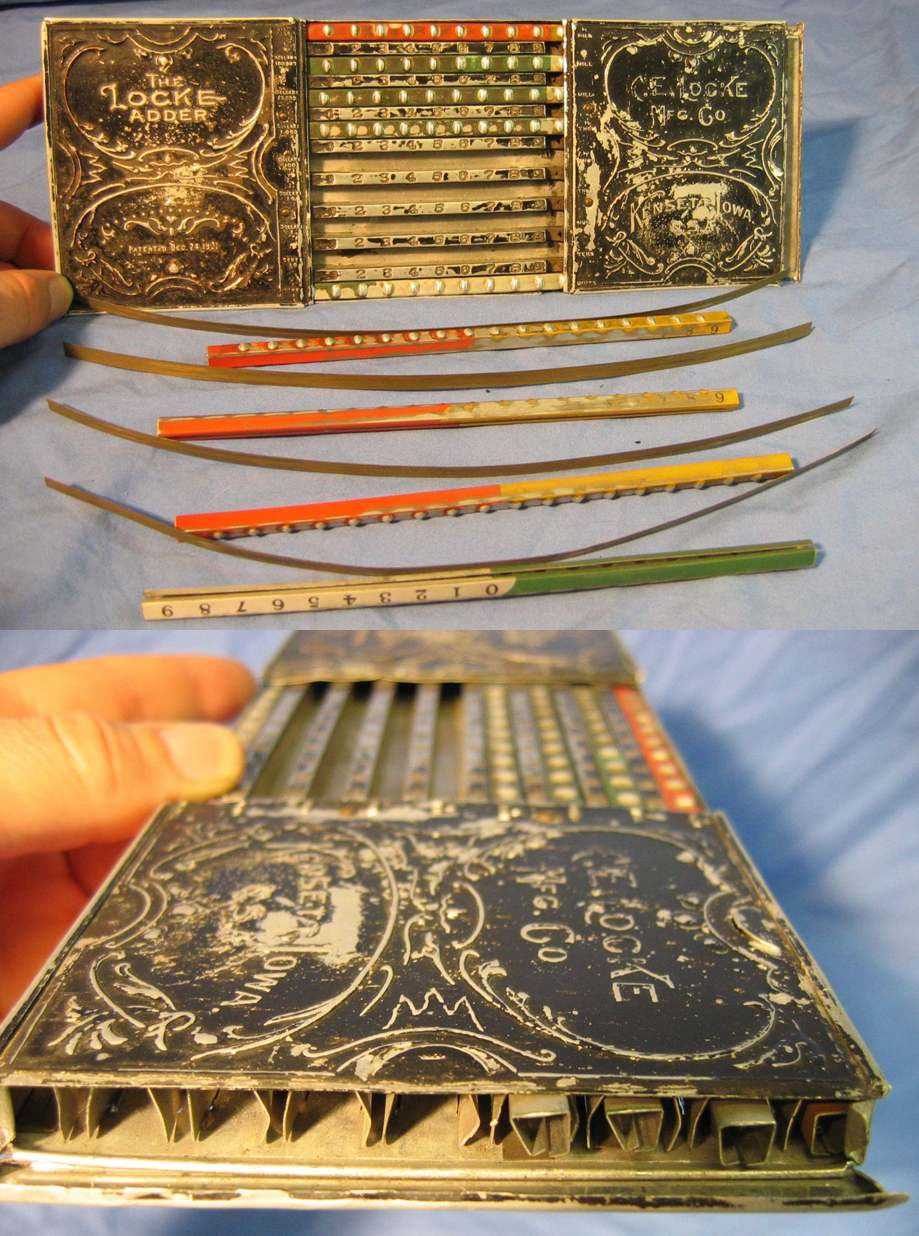

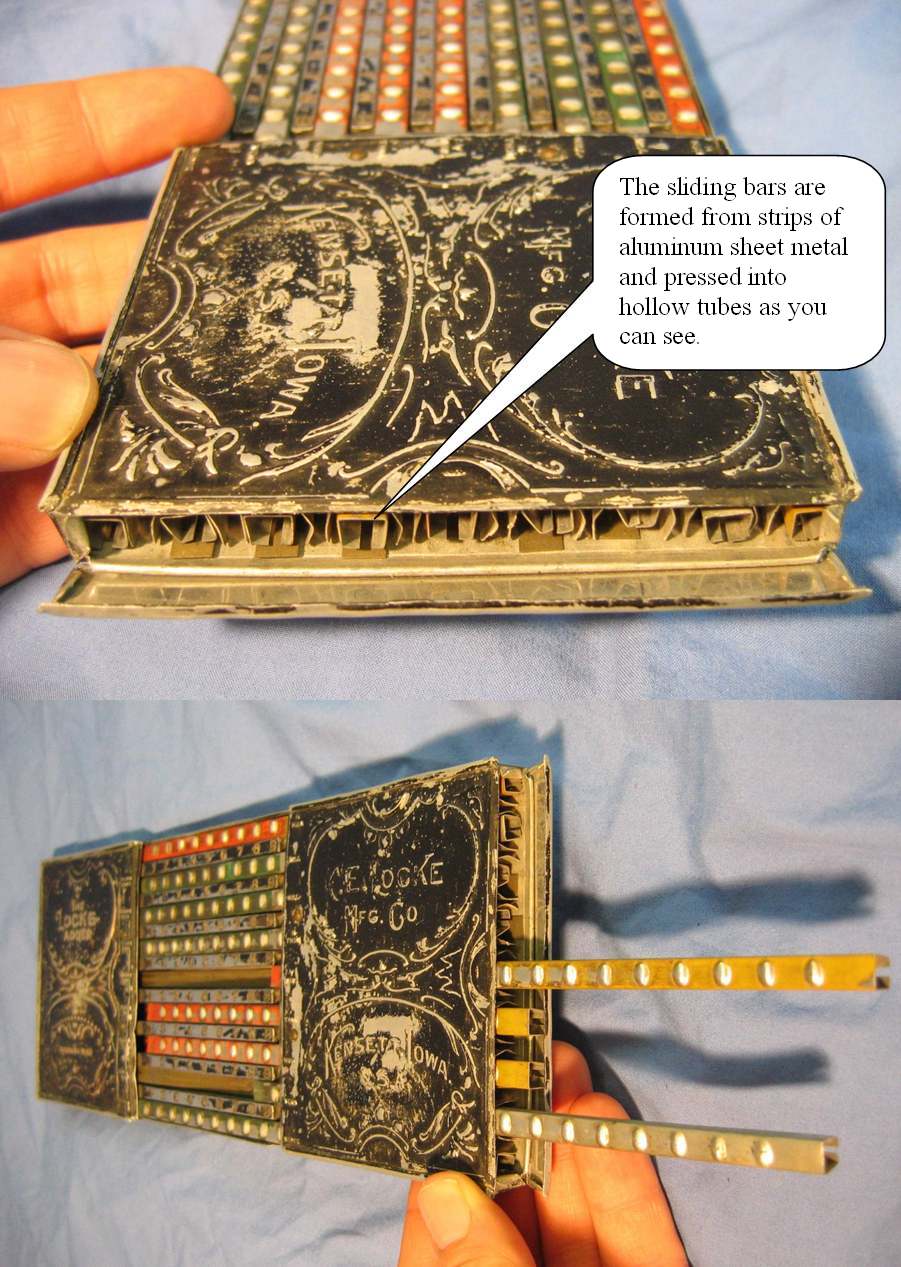

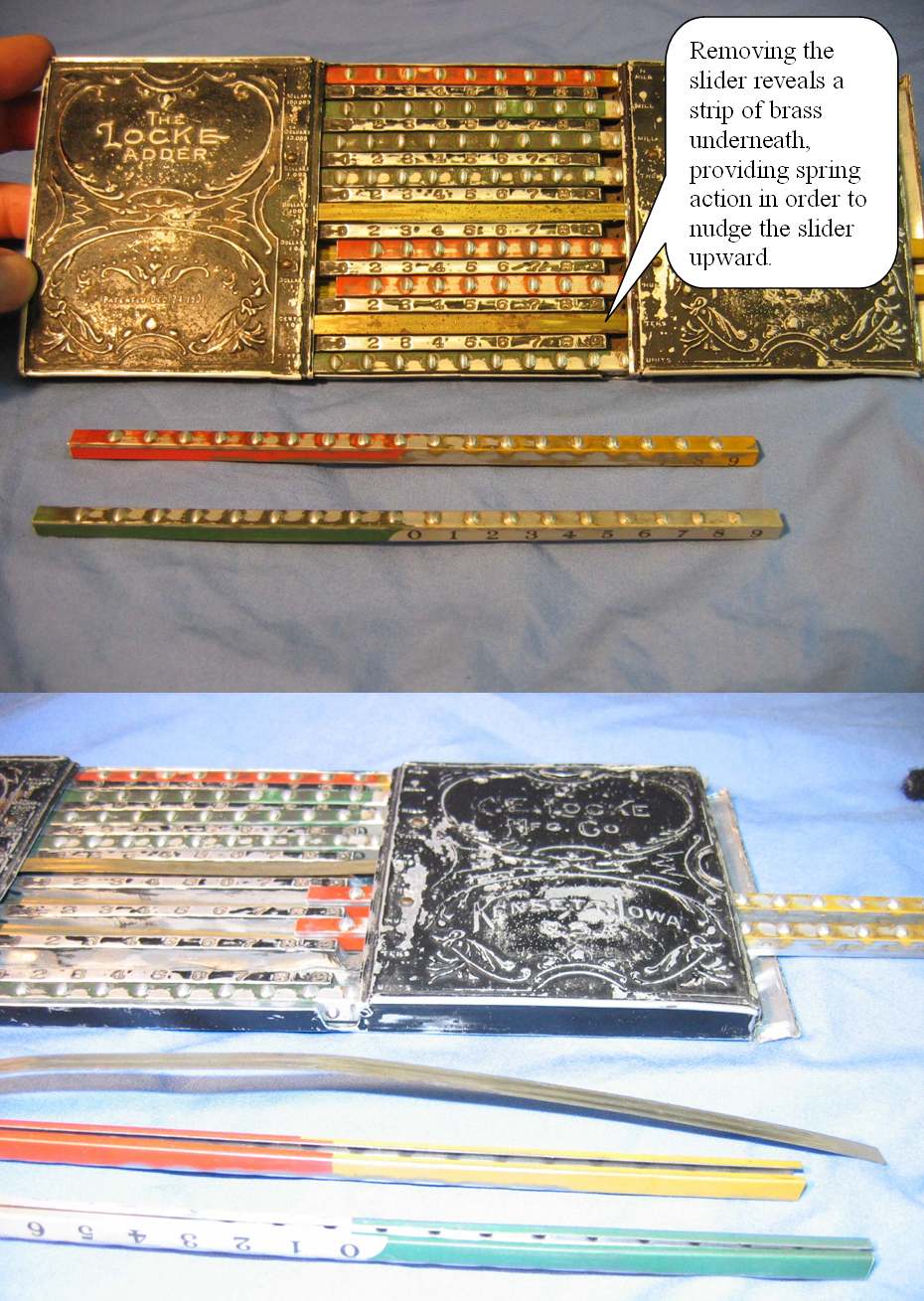

A series of photos show the Locke Adder being disassembled

The Locke Adder Restored C.E. Locke Mfg. Co. Kensett Iowa 1901
The Locke Adder  Restored C.E. Locke Mfg. Co. Kensett Iowa 1901
Two photos of the same Locke Adder seen disassembled above, now restored.
C.E. Locke Mfg. Co. C.E. Locke Mfg. Co. Kensett Iowa 1901

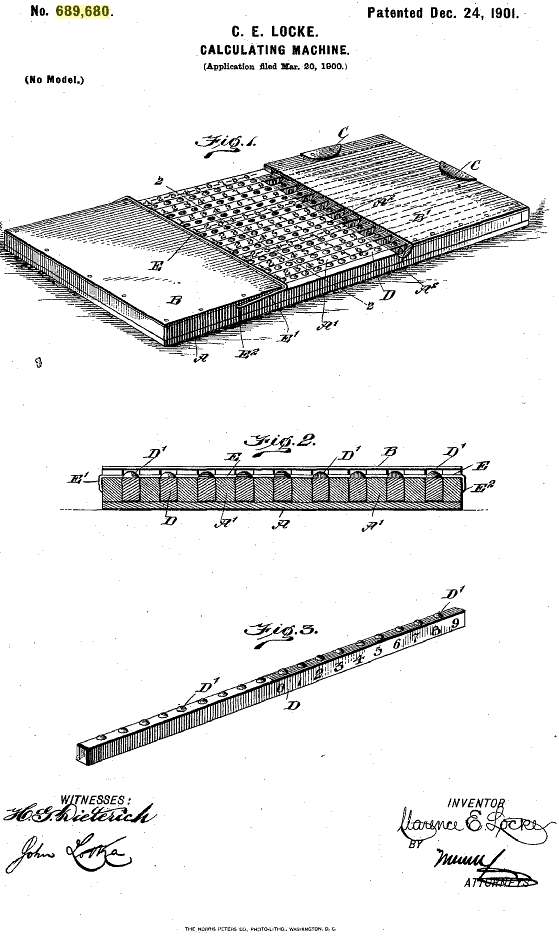

Patent Drawing for C. E. Locke Calculating Machine Locke Adder Patent 689680
Patent Drawing for C. E. Locke Calculating Machine
The Patent 689,680 was granted for the Locke Adder December 24 1901

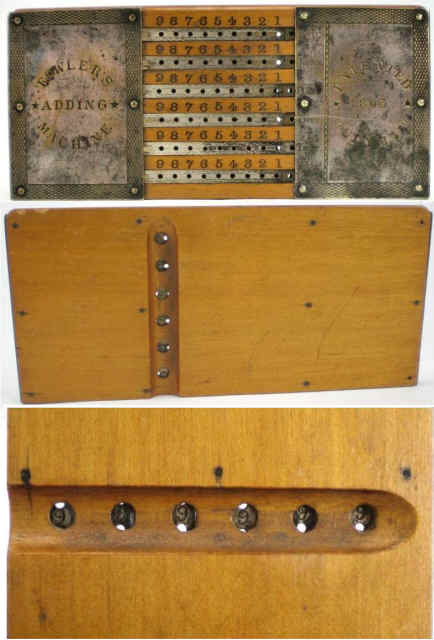

Fowler's Adding Machine 1863
An influential progenitor to the Lock Adder
(source ebay)
